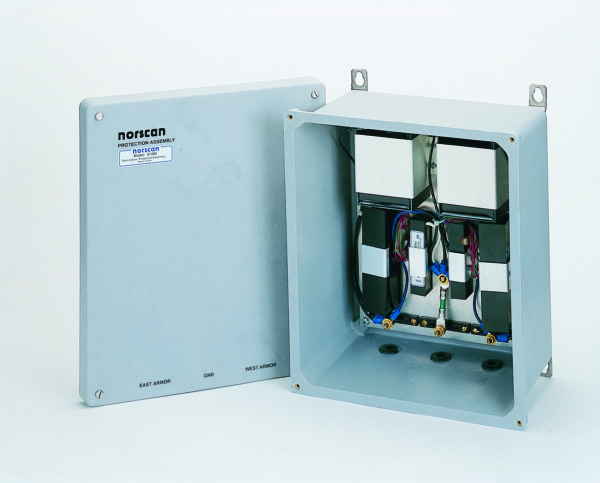

51300 Termination Protection Assembly

The 51300 Termination Protection Assembly is installed at building locations where cable location/monitoring terminations are required. The 51300 is used in the cable vault or at the building entry point to safely terminate two fiber optic cable armors. The assembly is pre-wired in an enclosure to allow for ease of installation at the building entry location.

SKU: 51300TPA Categories: , ,
Description

The assembly provides terminations for fiber optic cable armors under the control of 2000 or 4200 Cable Management Systems. These terminations include an LTU which terminates locate tones above 250 Hz and a 2230 STU which terminates the cable monitoring functions. Both the LTU and STU contain a high voltage surge arrestor that provides low impedance ground path for high voltage transients. Induced Voltage Filters are also included to provide a low impedance path to ground for induced 60 Hz AC current.

Features

Features



  • Terminates two cable armors
  • Pre-wired to simplify office installation
  • Terminations installed for both cable location and cable monitoring
  • Surge arrestors located in terminations provide surge current protection and transient suppression
  • Induced Voltage Filters providing low impedance path to ground for induced 60 Hz current
  • Fiberglass polyester enclosure which meets NEMA and CSA standards for electrical enclosures



Specifications

Specifications

Inputs

CAPACITANCE: < 30 pF, line to ground
Protection

DC BREAKDOWN VOLTAGE: 300 – 600 VDC
IMPULSE BREAKDOWN: 500v (typical) at 100 v/µsec
750v (max.) at 100 v/µsec
IMPULSE CURRENT RATING: 40,000 A, 8×20 µs impulse, single cycle
AC CURRENT RATING (MOMENTARY): 10 A, 60Hz AC, 1s application
AC VOLTAGE RATING (CONTINUOUS): 175 VAC, 60Hz AC continuous
Induced Voltage Filtering

VOLTAGE REDUCTION RATION (TYPICAL): 7
(Zsource = 200O, IF = 500 ma)
MAXIMUM VOLTAGE (CONTINUOUS): 20 V, AC RMS
(5 MIN.): 250 V, AC RMS
CLAMPING VOLTAGE (TYPICAL): 15 V, AC RMS
IMPEDANCE (NOMINAL): 30 Ω @ 60 Hz
(I = 500 MA)
1200 O @ 30 HZ
7000 O @ 512 HZ
Dimensions:
14 x 12 x 7 in (35.6 x 30.5 x 17.8 cm)
Weight:
14.5 lbs (6.6 kg)
Operating Temperature Range:
-50°C to +85°C (-58°F to +185°F)
